TMX Series Overwrappers

The TMX Series is a fully automatic trailing edge seal overwrapping machine solution capable of wrapping speeds of up to 70 packs per minute.

With a PLC control system, HMI, Full Servo operation and quick change tooling combined to offer a highly flexible and efficient production machine.

All our overwappers have the capability to run Eco-friendly wrapping materials

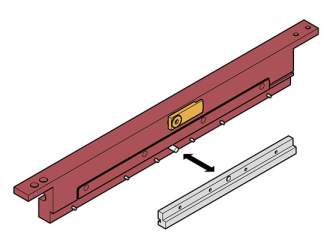

1. Quick Release Change Part Tooling
1. Quick Release Change Part Tooling

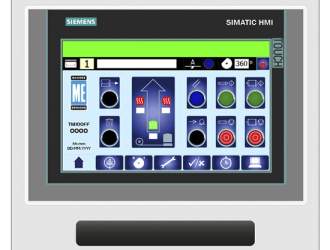

2. Operator HMI Control Panel
2. Operator HMI Control Panel

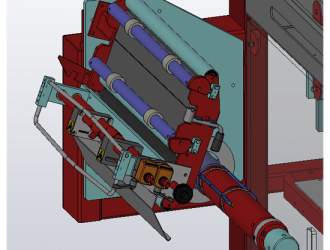

3. Film Slitter Side Loading Film Spindle
3. Film Slitter Side Loading Film Spindle

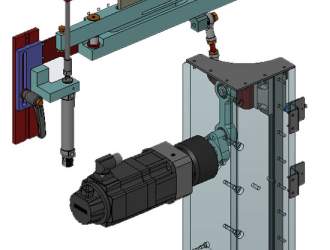

4. Full Servo Drive
4. Full Servo Drive

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

TMX Series

70 per minute *

45-300mm

40-200mm

15-100mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration
Film Slitter
Film Slitter

Wrapping Process

TMX Series pack wrapping process
TMX Series pack wrapping process
TMX Series trailing edge seal overwrapping diagram
TMX Series trailing edge seal overwrapping diagram

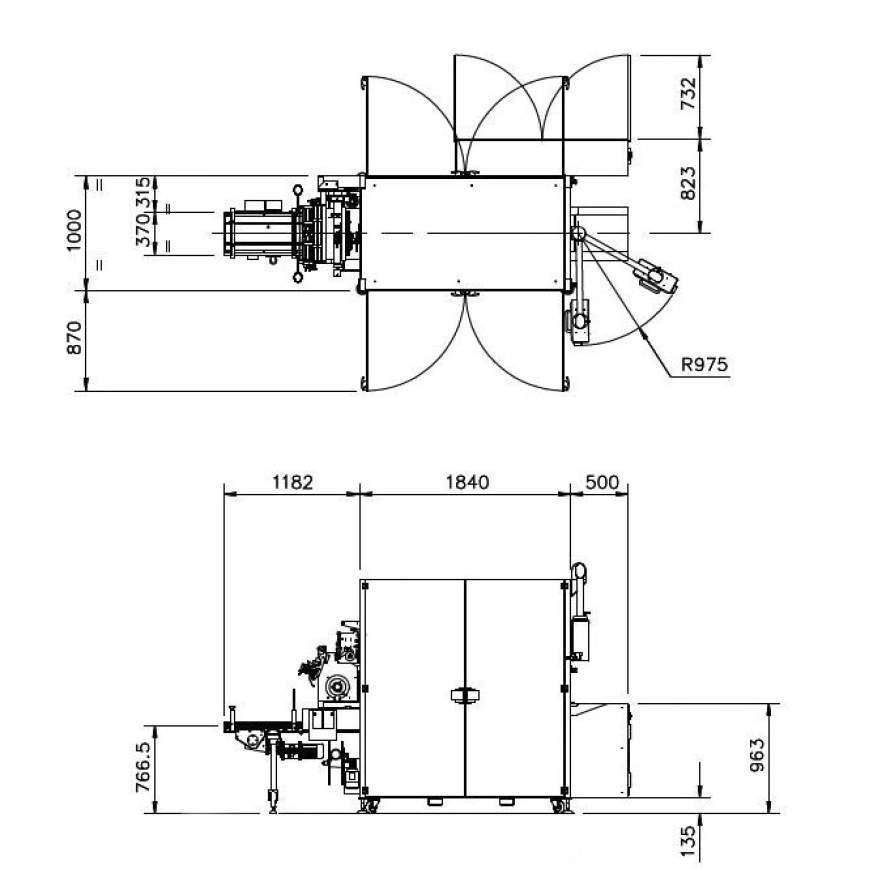

Engineering Drawings

TMX Series engineering drawings
TMX Series engineering drawings
