TM Series Overwrappers

The TM Series is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 60 packs per minute.

With a PLC control system, HMI, hybrid Servo and Mechanical operation, quick change tooling combined to offer a highly flexible and efficient production machine.

All our overwappers have the capability to run Eco-friendly wrapping materials

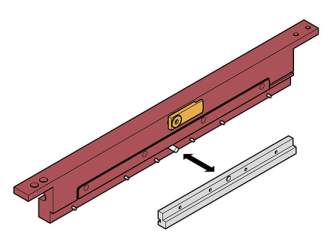

1. Quick Release Change Part Tooling
1. Quick Release Change Part Tooling

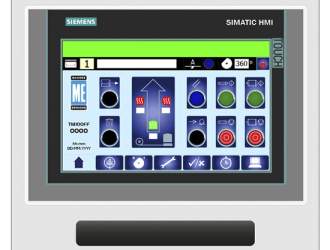

2. Operator HMI Control Panel
2. Operator HMI Control Panel

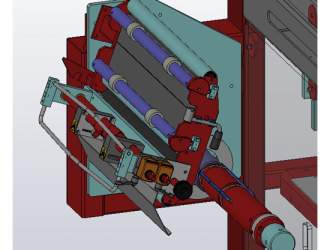

3. Film Slitter Side Loading Film Spindle
3. Film Slitter Side Loading Film Spindle

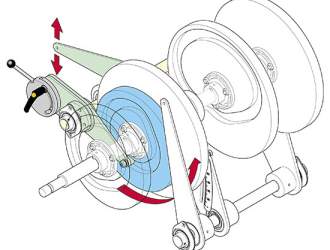

4. Servo Mechanical Hybrid
4. Servo Mechanical Hybrid

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

TM Series

60 per minute *

45-300mm

40-200mm

15-125mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration
Film Slitter
Film Slitter

Wrapping Process

TM Series pack wrapping process diagram
TM Series pack wrapping process diagram
TM Series trailing edge seal overwrapping diagram
TM Series trailing edge seal overwrapping diagram

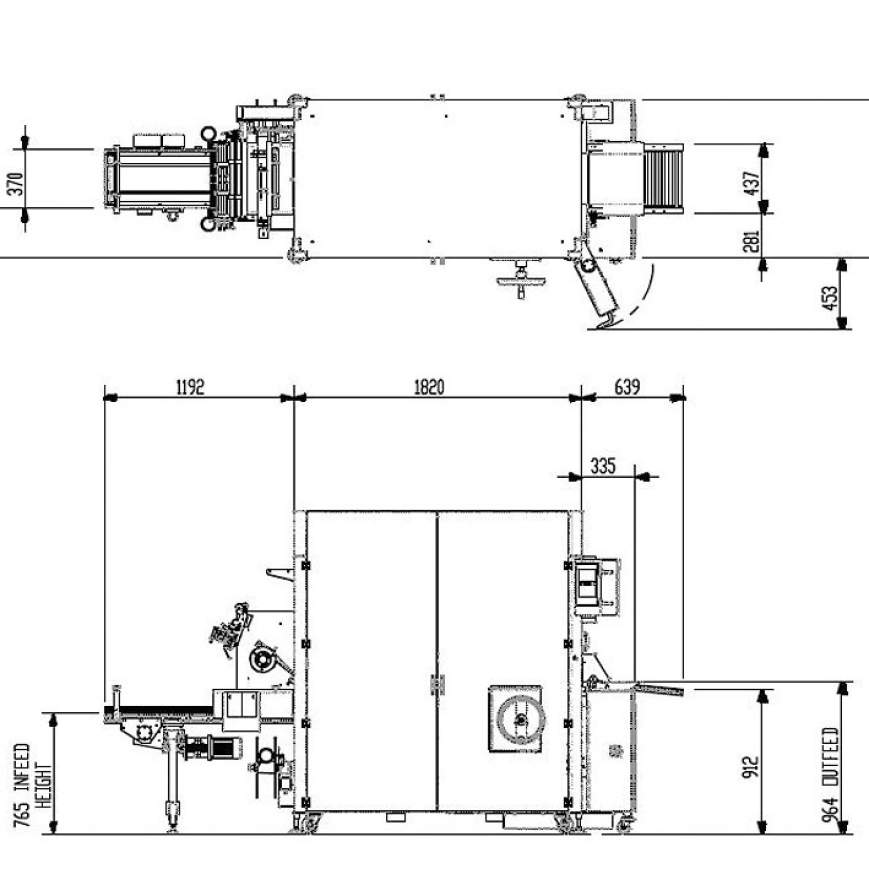

Engineering Drawings

TM Series engineering drawings
TM Series engineering drawings
