ME 300T Series Overwrappers

The ME 300T series is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 300 packs per minute.

This efficient high-speed carton wrapping machine has multi axis servo motor system, rotary turret pack process and large pack size capability with quick change parts.

All our overwappers have the capability to run Eco-friendly wrapping materials

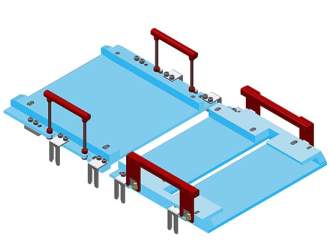

1. Quick Release Change Part Tooling
1. Quick Release Change Part Tooling

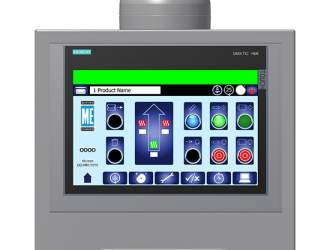

2. Operator HMI Control Panel
2. Operator HMI Control Panel

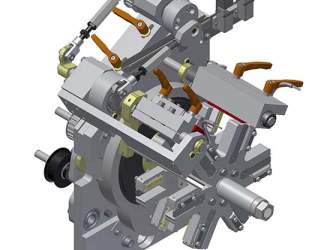

3. Rotary Turret Pack Process
3. Rotary Turret Pack Process

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

ME 300T Series

300 per minute *

70-180mm

40-70mm

10-50mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration
Pack Shrink Unit
Pack Shrink Unit

Wrapping Process

ME 300T pack wrapping process
ME 300T pack wrapping process
ME 300T series trailing edge seal overwrapping diagram
ME 300T series trailing edge seal overwrapping diagram

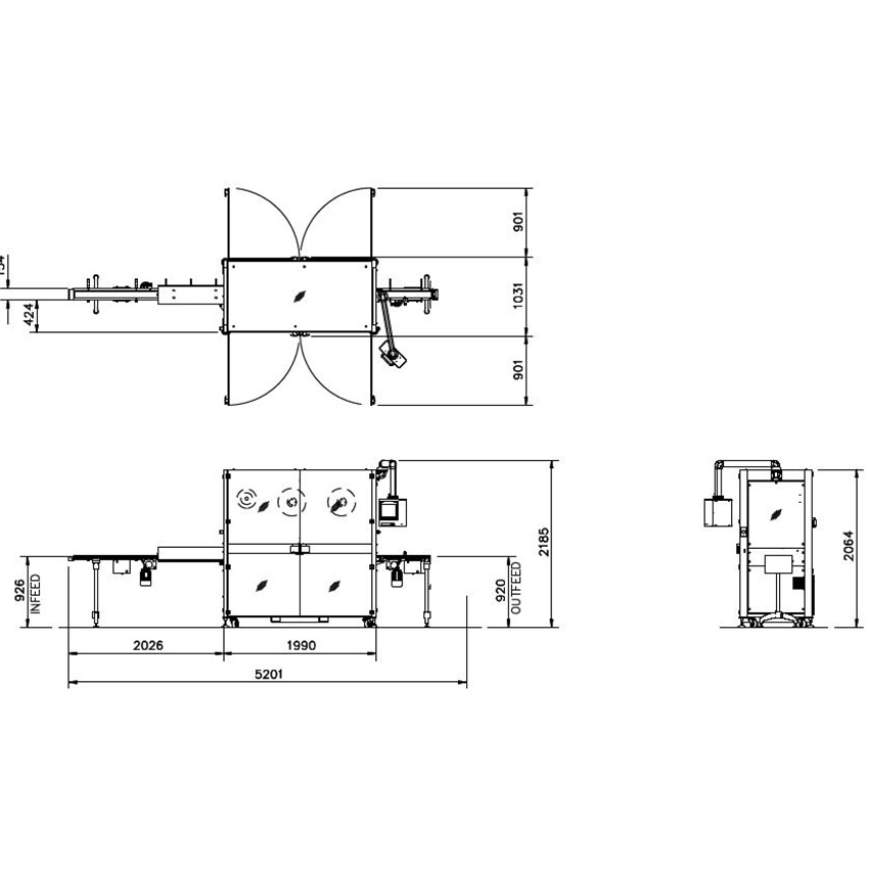

Engineering Drawings

ME 300T series engineering drawings
ME 300T series engineering drawings
