ME 120B Series Overwrappers

The ME 120B Series is a fully automatic base seal overwrapping machine, capable of wrapping speeds of up to 120 packs per minute.

Having a robust servo control system, operator diagnostic panel and quick change tooling combine to offer a highly flexible and efficient large capacity production machine.

All our overwappers have the capability to run Eco-friendly wrapping materials

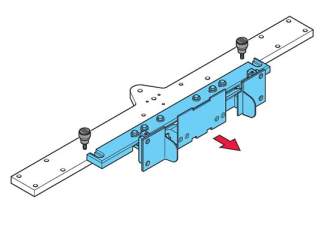

1. Quick Release Change Part Tooling
1. Quick Release Change Part Tooling

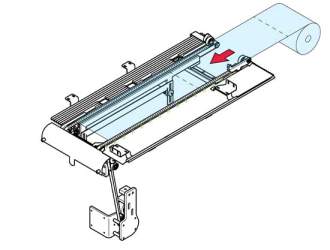

2. Vacuum Film Drive
2. Vacuum Film Drive

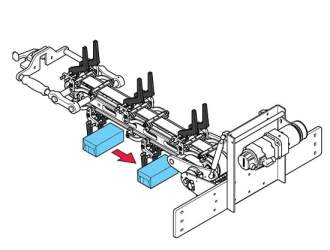

3. Independent Pack Transfer (IPT)
3. Independent Pack Transfer (IPT)

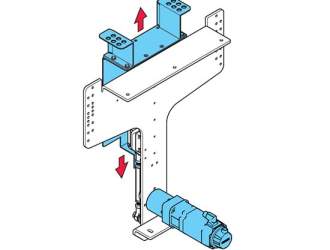

4. Servo Driven Units
4. Servo Driven Units

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

ME 120B Series

120 per minute *

50-330mm

28-190mm

10-110mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Print Registration
Print Registration
Paper
Paper

Wrapping Process

ME 120B Series pack wrapping process diagram
ME 120B Series pack wrapping process diagram
ME 120B Series base seal overwrapping diagram
ME 120B Series base seal overwrapping diagram

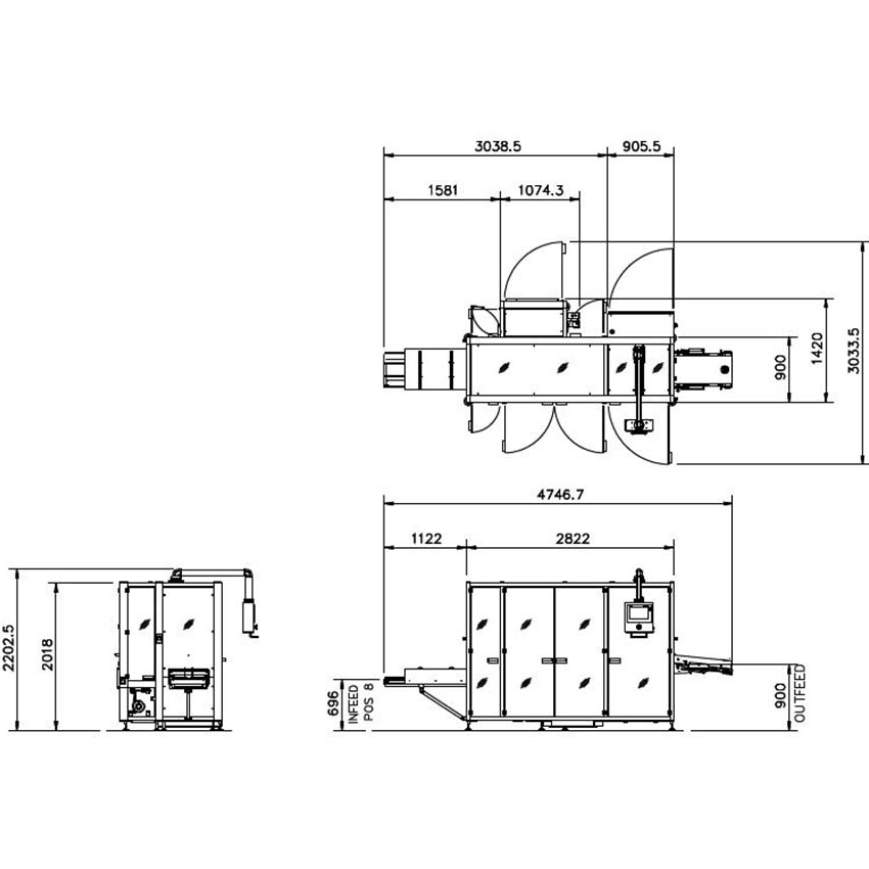

Engineering Drawings

ME 120B Series engineering drawings
ME 120B Series engineering drawings
