BX Series Overwrappers

The BX Series is a fully automatic base seal overwrapping machine capable of wrapping speeds of up to 60 packs per minute.

With a PLC control system and HMI, quick change tooling combined to offer a highly flexible and efficient production machine.

All our overwappers have the capability to run Eco-friendly wrapping materials

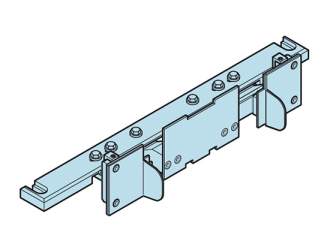

1. Quick Release Change Parts
1. Quick Release Change Parts

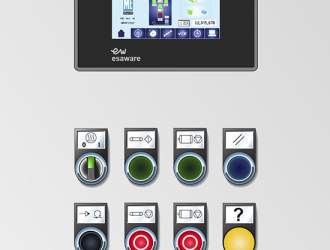

2. Operator HMI Control Panel
2. Operator HMI Control Panel

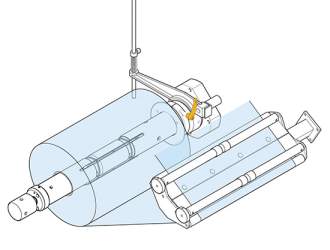

3. Side Loading Film Spindle
3. Side Loading Film Spindle

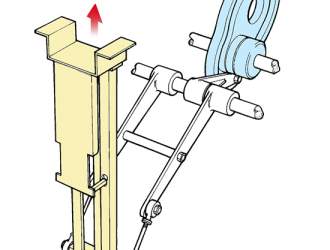

4. Cam Operated Mechanical Drive
4. Cam Operated Mechanical Drive

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

B Series

60 per minute *

50-305mm

25-250mm

10-150mm

B Wide

40 per minute *

50-450mm

55-300mm

10-150mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration

Wrapping Process

BX series pack wrapping process
BX series pack wrapping process
BX Series pack overwrapping diagram
BX Series pack overwrapping diagram

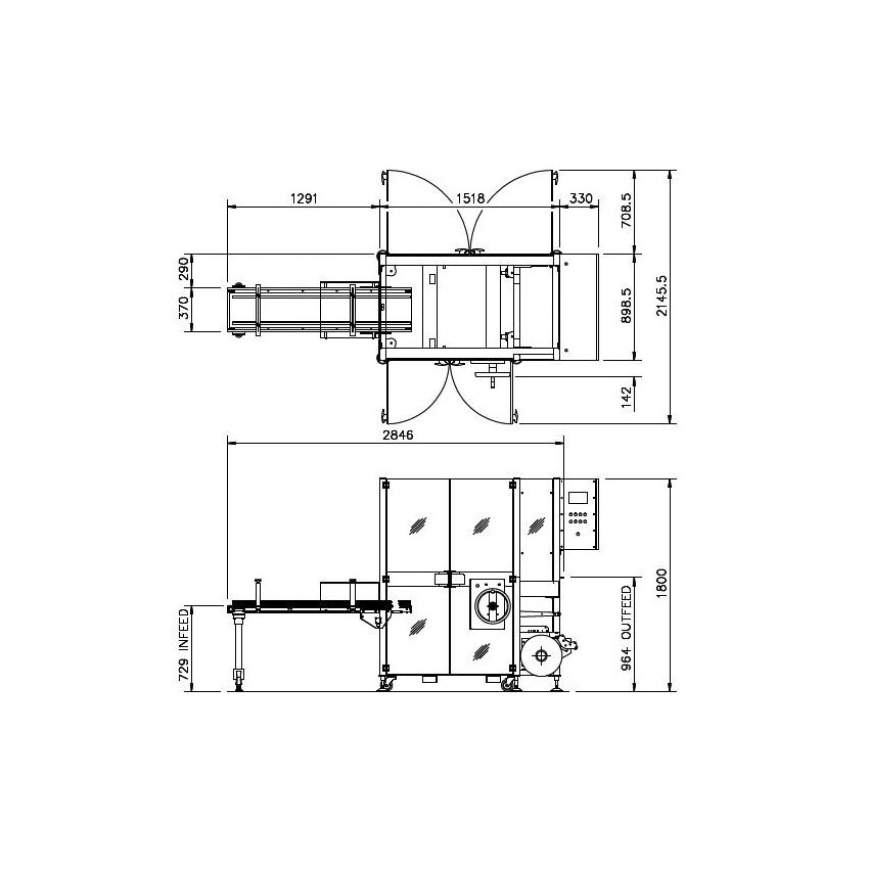

Engineering Drawings

BX Series engineering drawings
BX Series engineering drawings
