LX Series Overwrappers

The LX Series is a fully automatic base seal overwrapping machine capable of wrapping speeds of up to 90 packs per minute.

With a PLC control system and HMI, quick change tooling, mechanical enhancements enable a wide range of applications and combine to offer a highly flexible and efficient production machine.

All our overwappers have the capability to run Eco-friendly wrapping materials

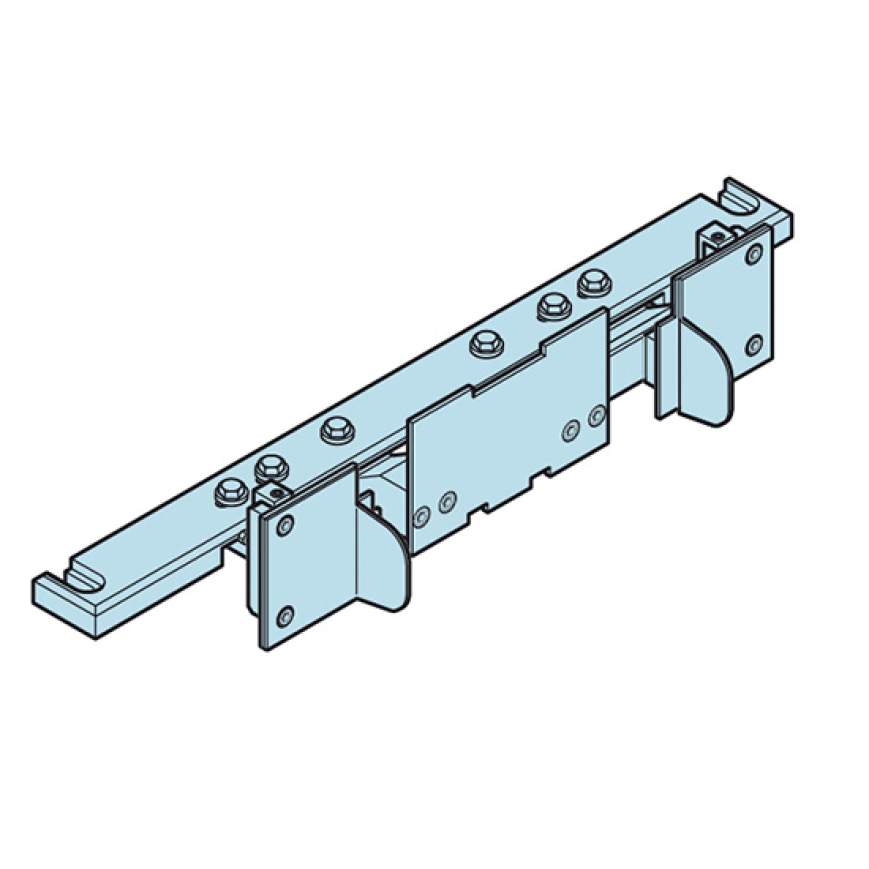

1. Change Part Tooling
1. Change Part Tooling

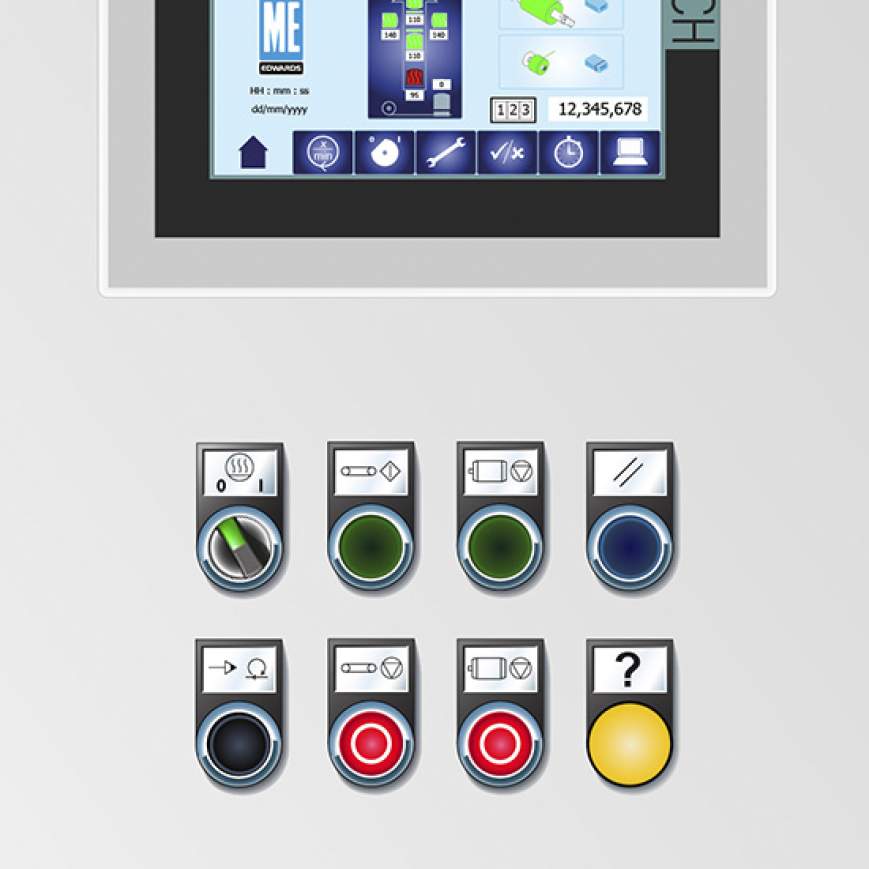

2. Operator Control Panel
2. Operator Control Panel

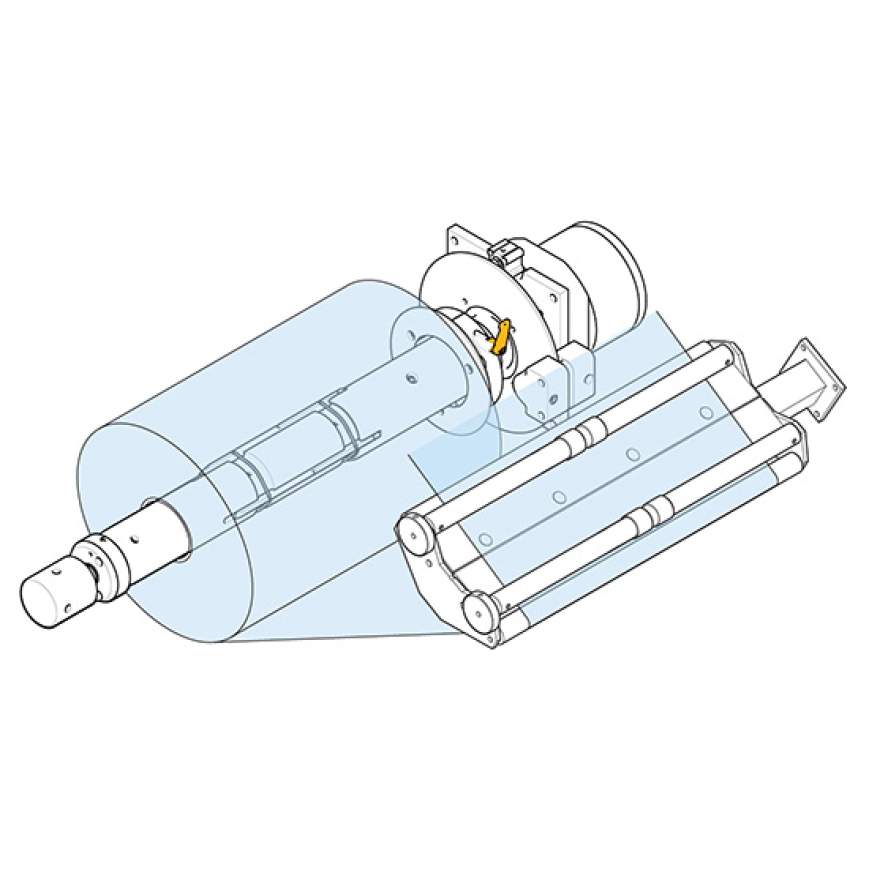

3. Side Loading Film Spindle
3. Side Loading Film Spindle

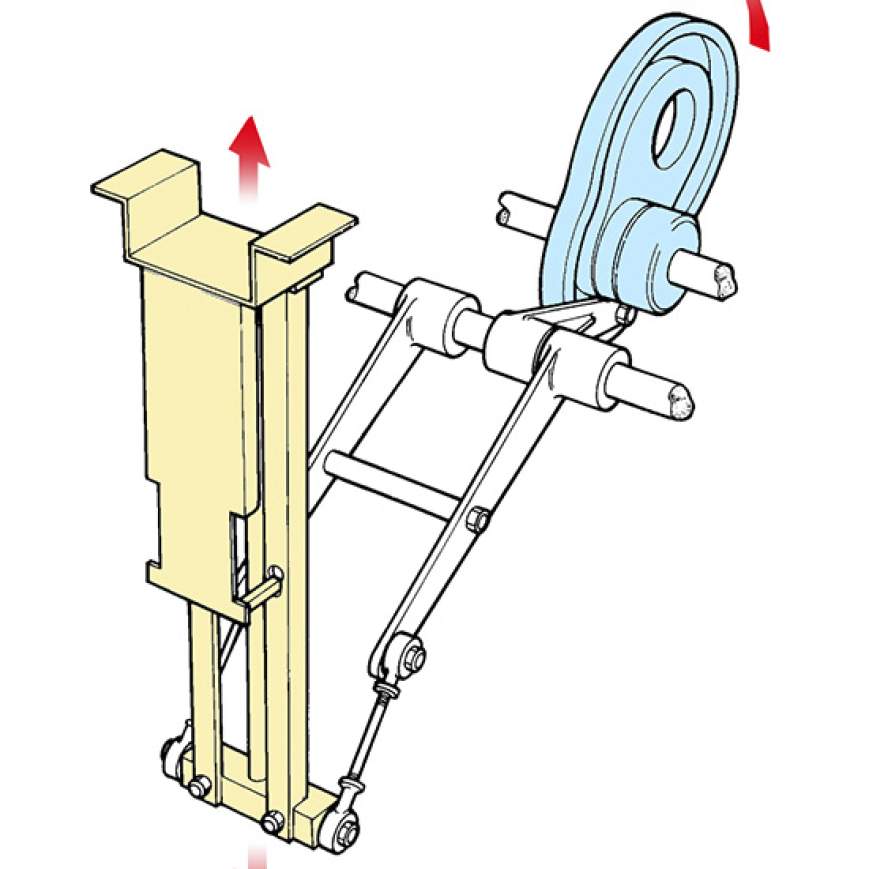

4. Cam Operated Mechanical Drive
4. Cam Operated Mechanical Drive

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

LX series

70 per minute *

50-305mm

25-250mm

10-150mm

LX wide

40 per minute *

50-450mm

55-300mm

10-150mm

LXH

90 per minute *

50-305mm

25-150mm

10-70mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration

Wrapping Process

LX Series pack wrapping process diagram
LX Series pack wrapping process diagram
LX Series base seal overwrapping diagram
LX Series base seal overwrapping diagram

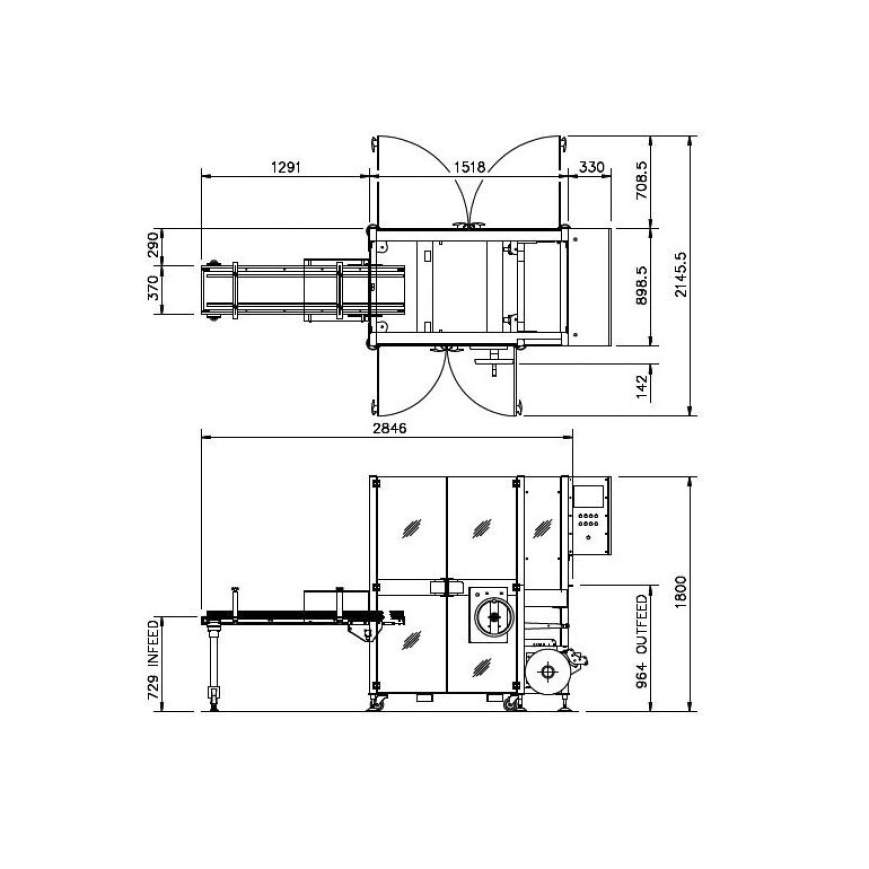

Engineering Drawings

LX Series engineering drawings
LX Series engineering drawings
