TML Series Overwrappers

The TML series is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 40 packs per minute.

With a PLC control system, simple and fast pack size changeover combine to offer flexible and efficient carton wrapping machine solution.

All our overwappers have the capability to run Eco-friendly wrapping materials

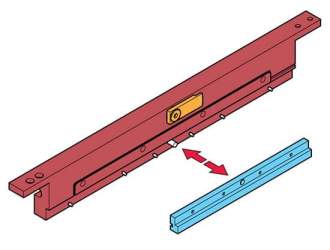

1. Quick Release Change Part Tooling
1. Quick Release Change Part Tooling

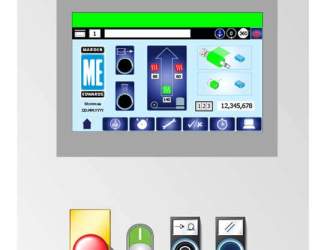

2. Operator HMI Control Panel
2. Operator HMI Control Panel

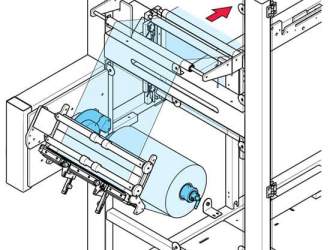

3. Side Loading Film Spindle
3. Side Loading Film Spindle

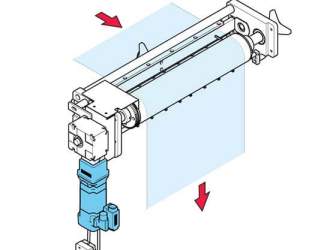

4. Servo Film Feed
4. Servo Film Feed

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output Speed

a - pack length

b - pack width

c - pack height

TML Series

40 per minute *

45-300mm

37-200mm

20-100mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Print Registration
Print Registration
Film Slitter
Film Slitter

Wrapping Process

TML Series pack wrapping process
TML Series pack wrapping process
TML Series trailing edge seal overwrapping diagram
TML Series trailing edge seal overwrapping diagram

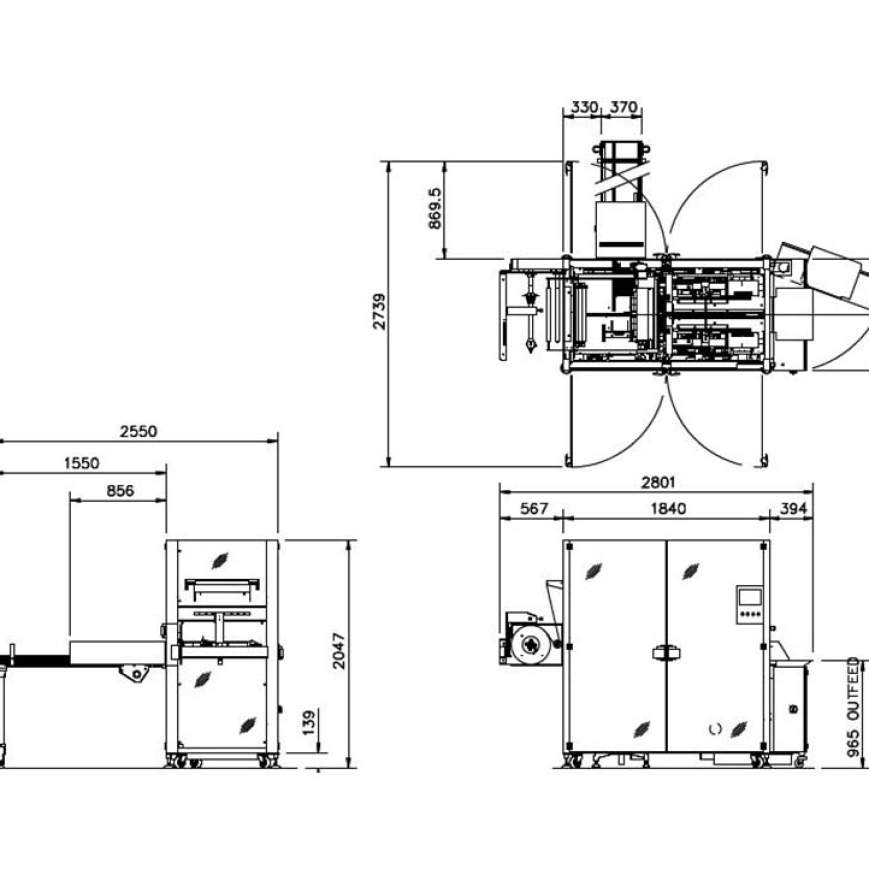

Engineering Drawings

TML Series engineering drawings
TML Series engineering drawings
