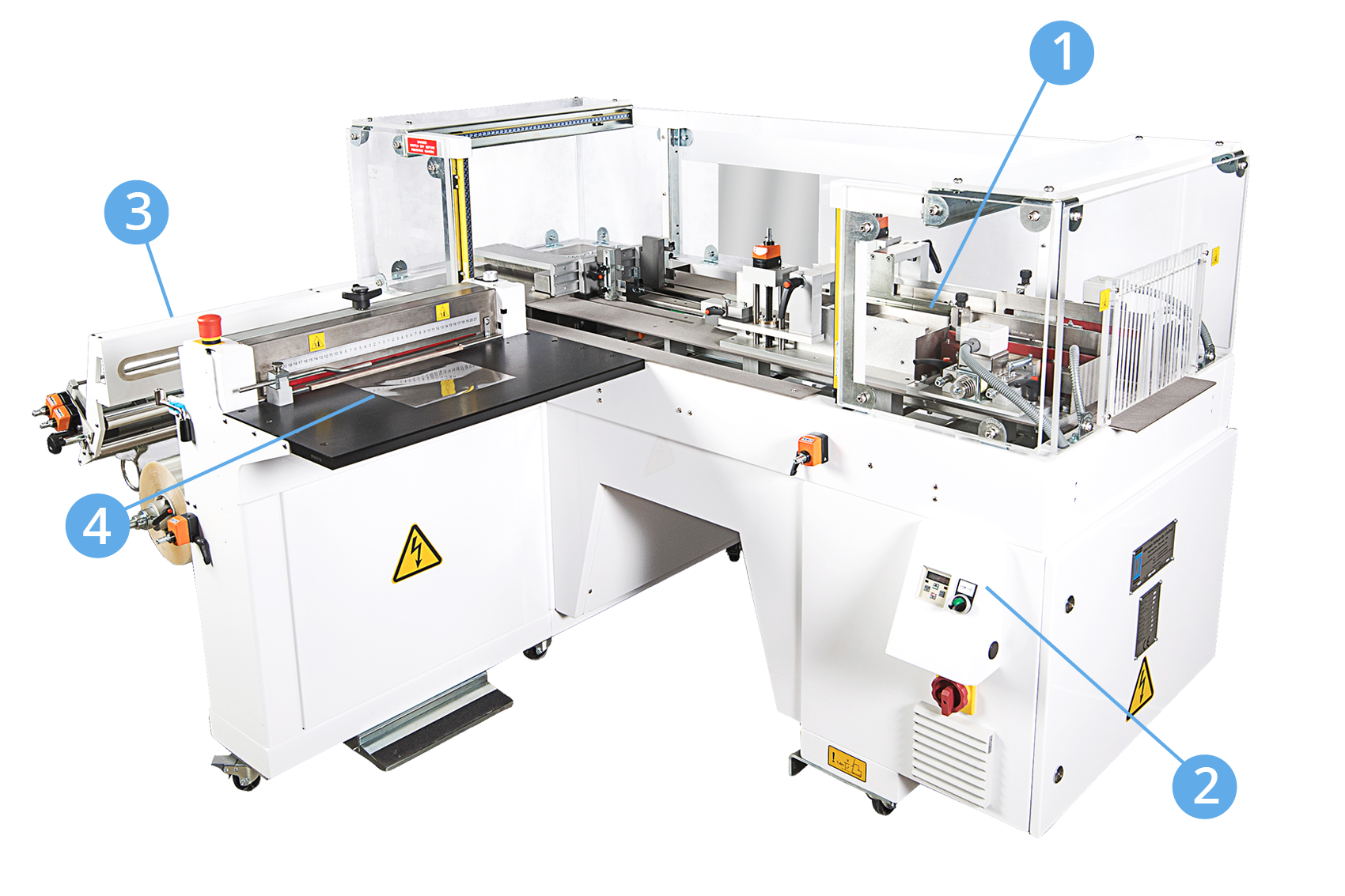

Semi-Auto Series Overwrappers

The Semi-Auto trailing edge seal overwrapping machine solution includes fully adjustable tooling capable of wrapping a large pack size range requiring only single phase electrics, ideal for short batch work.

All our overwappers have the capability to run Eco-friendly wrapping materials

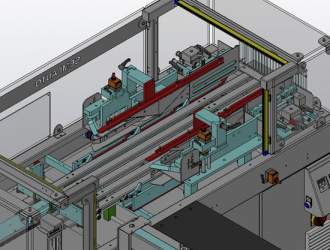

1. Automatic Folding and Sealing
1. Automatic Folding and Sealing

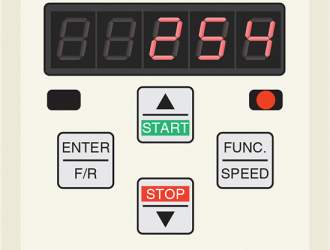

2. Operator Control Panel
2. Operator Control Panel

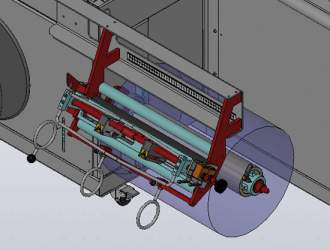

3. Optional Film Slitter
3. Optional Film Slitter

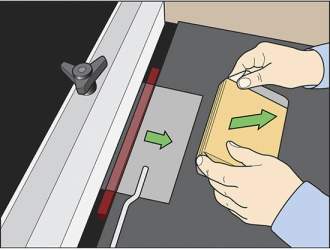

4. Operator Station
4. Operator Station

Alternative Eco-friendly Wrapping Material Options

Marden Edwards overwrapping machines have the capacity to wrap cartons using alternative eco-friendly materials. See below wrapping material options.

Recyclable BOPP Film

Biodegradable BOPLA Film

Biodegradable Paper

Machine Specification

Model

Output speed

a - pack length

b - pack width

c - pack height

Semi-Auto Series

10 per minute *

60-300mm

40-200mm

25-100mm

* Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.

Machine Options

Tear Tape
Tear Tape
Dot End Seal
Dot End Seal
Film Slitter
Film Slitter

Wrapping Process

Semi-auto pack process diagram
Semi-auto pack process diagram
Semi-auto series trailing edge seal overwrapping diagram
Semi-auto series trailing edge seal overwrapping diagram

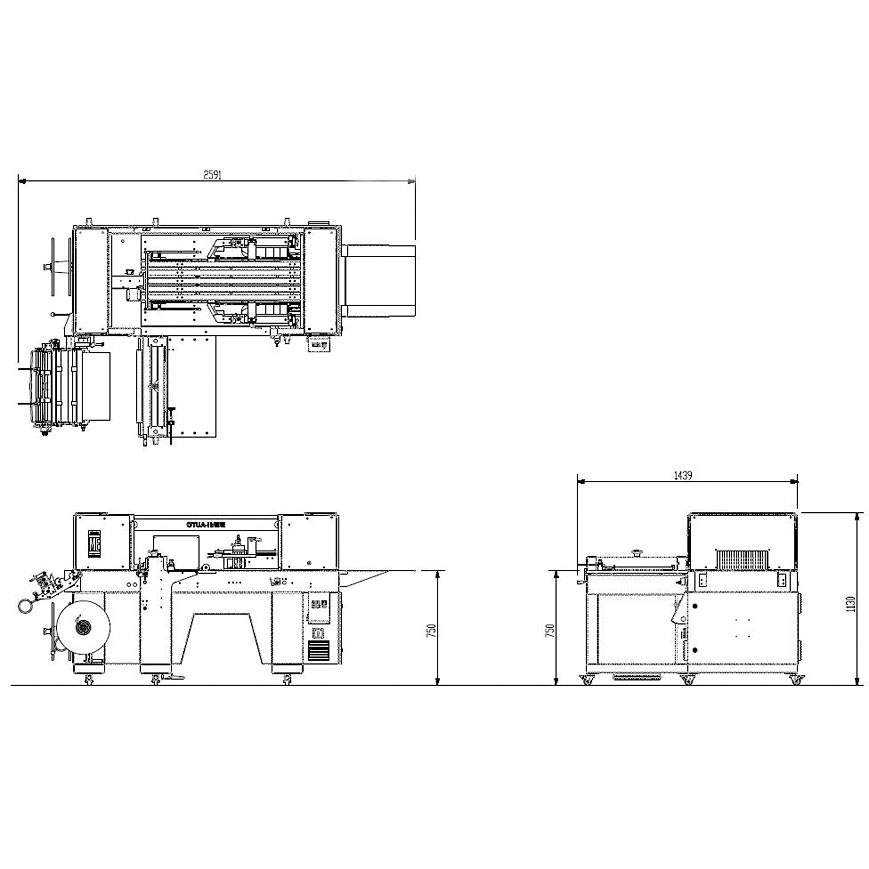

Engineering Drawings

Semi-Auto Series engineering drawings
Semi-Auto Series engineering drawings
